Latest [Oct 23, 2023] Nokia 4A0-265 Exam Practice Test To Gain Brilliante Result

Take a Leap Forward in Your Career by Earning Nokia 4A0-265

QUESTION 10
Suppose a Raman amplifier has been plugged into slot 1/8. Which command should the user enter to retrieve the total optical power detected at the ingress interface?

show interface 1/8 opin

show interface 1/8 power

show Interface 1/8/LINEIN

show interface 1/8/UNEIN detail

QUESTION 11
Which of the following Performance Measurement (PM) type is NOT typically retrieved at an Optical Transponder (OT) line interface?

Digital Wrapper (DW)

Ethernet collision counters

Forward Error Correction – Errors Counted (FEC-EC)

Optical Power Received (OPR)

QUESTION 12
Which of the following statements about the “config powermgmt egress 1/2 adjust status command” is TRUE?

The command displays the status of power adjustment on the specified egress amplifier.

The command enables power adjustment feature on the specified egress amplifier, as this feature Is always and only available at the egress amplification stage.

The command enables power adjustment feature on the specified egress amplifier.

The command displays commissioning status and WT decoder usage for the specified egress amplifiers only, as this feature is always and only done in the egress direction.

QUESTION 13
Suppose a “Channel Absent” alarm is reported on an 1830 PSS node. What is the recommended order for the following troubleshooting steps?

1. Go to the suspected troubled node / card / port and look at Wave Keys (in / out).
2. Retrieve the cross-connection (XC) details and see what Wave Keys should be present.
3. Check observed Wave Keys against expected Wave Keys.
4. Retrieve the channel power trace.

1. Retrieve the channel power trace.
2. Retrieve the cross-connection (XC) details and see what Wave Keys should be present.
3. Go to the suspected troubled node / card / port and look at Wave Keys (in / out).
4. Check observed Wave Keys against expected Wave Keys.

1. Retrieve the cross-connection (XC) details and see what virave Keys should be present.
2. Go to the suspected troubled node / card / port and look at Wave Keys (in / out).
3. Retrieve the channel power trace.
4. Check observed Wave Keys against expected Wave Keys.

1. Check observed Wave Keys against expected Wave Keys.
2. Go to the suspected troubled node / card / port and look at Wave Keys (in / out).
3. Retrieve the channel power trace.
4. Retrieve the cross-connection (XC) details and see what Wave Keys should be present.

QUESTION 14
Which of the following statements about the Wavelength Tracker (WT) capability is TRUE?

Wave Keys are originated by optical amplifiers.

WT uses a unique identifier based on a pair of numbers encoded by Raman amplifiers into each service wavelength direction.

WT is compatible with other vendor domains, but the user must make sure that Wave Keys are unique on the crossed domains.

WT uses a unique identifier based on a pair of numbers encoded by Optical Transponders OTs) into each service wavelength direction.

QUESTION 15
A power adjustment has succeeded conditionally because of gain settings set to higher levels than expected by design. Which of the following alarms will raise?

Invalid topology (PRCDRERR-TOPO)

Amplifier Gain Tilt Adjustments Suspended (PWRTILTSUSP)

Power Adjustment Failure (PWRADJFAIL)

Gain Adjustment Exceeded Max Value (PWRMAXGAIN)

QUESTION 16

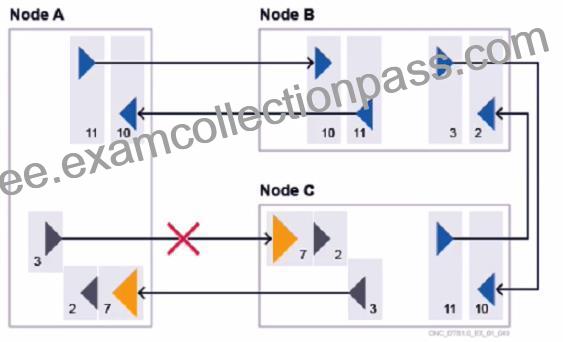

Consider the exhibit. A single directional fiber cut is occurring between two amplifiers in unidirectional configuration with Raman pump.
Multiple services are crossing the affected span.
Which node(s) will report an Incoming Payload LOS” alarm?

No node, as a Raman pump is used in Node A.

Node C only.

Both Node A and Node C

Neither Node A nor Node C.

QUESTION 17
Which of the following is a passive component in a CDC-F network configuration?

130SCX10 Optical Transponder

MSH4-FSB Fiber Shuffle Module

WR20-TFM Wavelength Router

IRDM20 Integrated ROADM

QUESTION 18
Which of the following statements about 1-Day PMs is TRUE?

1-Day PMs show measurements collected over the preceding 24 hours. Up to 8 bins are available for data storing.

1-Day PMs show measurements collected since the beginning of the current day. Up to 8 bins are available for data storing.

1-Day PMs show measurements collected over the preceding 24 hours. Up to 33 bins are available for data storing.

1-Day PMs show measurements collected since the beginning of the current day. Up to 33 bins are available for data storing.

QUESTION 19

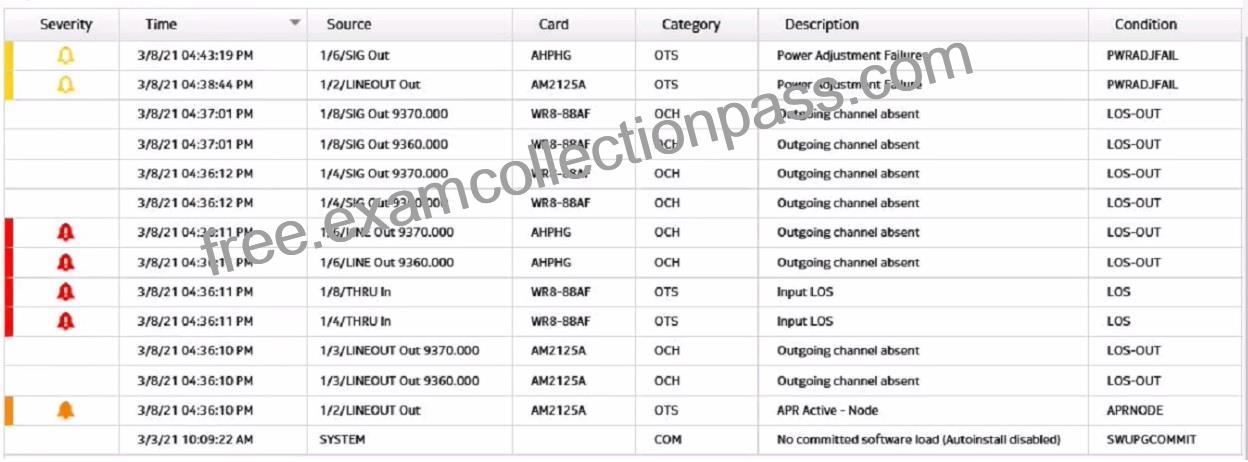

Refer to the exhibit, which shows a conditions list from the 1830 PSS GUI. (i) What is the total number of alarms reported? (ii) How many service affecting alarms are displayed? (iii) How many conditions are displayed?

(I) total number of alarms = 5
(ii) number of serviceaffectingalarms = 2
(Hi) number of conditions = 14

(i) total number of alarms = 7
(ii) number of service affecting alarms = 5
(Hi) number of conditions = 7

(i) total number of alarms = 2
(ii) number of service affecting alarms = 2
(Hi) number of conditions = 18

(i) total number of alarms = 4
(ii) number of service affecting alarms = 14
(iii) number of conditions = 2

QUESTION 20

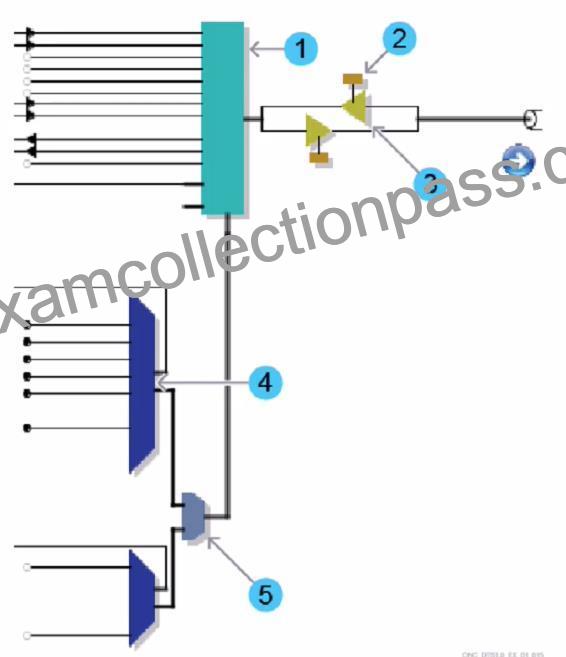

Consider the exhibit which shows part of an EPT Schematic View. Which number refers to the Wavelength Router (WR8-88) block?

QUESTION 21
A “Power Adjustment Required” alarm was raised on the ingress amplifier in slot 1/10. Which of the following commands should be entered to manually adjust the related amplifier optical power levels?

config powermgmt ingress 1/10 scot

config powermgmt ingress 1/10 power adjustment

config powermgmt ingress 1/10

config powermgmt ingress 1/10 adjust

QUESTION 22
Which of the following commands is used to retrieve the total output power level?

show interface am2125a 1/6/lineout

show interface am2125a 1/6/lineout detail

show interface am212 5a 1/6/lineout pm

show interface am2125a 1/6/lineout wavekey

QUESTION 23

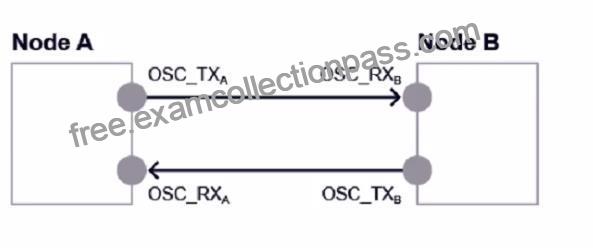

Consider the exhibit. Given the following power readings, what is the calculated span loss from Node A to Node B?

11.5

8.0

2.5

1.5

QUESTION 24
Which of the following statements best describes the output of the CLI command: show wavekey wtmonitor
1/6/LINE summary?

A list of all channels detected against the selected interface (in and out); it shows if a Wave Keys pair is expected, if a Wave Keys pair is received, and if the received Wave Keys pair is unexpected.

A list of all channels on this interface for which any Wave Keys pair is being received.

A list of all channels detected against the selected interface, including Wave Keys pair, channel status, expected and measured power, allowed deviation, and tolerance.

A list of the unexpected channels detected against the selected interface.
